Product Detail

1050gsm PVC tarpaulin canvas yog 31oz PVC tarpaulin khoom.680gsm PVC tarpaulin canvas muaj zog 1000D * 1000D 30 * 30 polyester puag scrim cov ntaub yog mildew resistant thiab muaj ib tug ruaj matt tiav. Tsim los rau ntau yam kev siv dav dav xws li banners, npog, chaw nyob, thiab lwm yam ntaub ntawv no yuav muab lub zog, tawv tawv, thiab ruaj khov tarpaulin rau ntau yam kev siv. 1050gsm PVC tarpaulin canvas muaj siab tenacity, tsim kua muag zog, zoo huab cua tsis kam, thiab kav ntev.

Product Overview

Cov ntaub ntawv Technical

Yam khoom Code		PIB 10301050	Txoj Kev Xeem
Base ntaub		1000D1000D 3030	DIN EN ISO 2060 Daim ntawv pov thawj
Qhov hnyav (GSM)		1050	TS EN ISO 2286-2 EN ISO 2286-2
Tensile zog	Qhov siab (N / 5cm)	3700	DIN53354
	Weft (N / 5cm)	3500	DIN53354
Tear Strength	Qhov siab (N / 5cm)	535	DIN53363
	Weft (N / 5cm)	480	DIN53363
Peeling zog	Qhov siab (N / 5cm)	120	DIN53357
	Weft (N / 5cm)	120	DIN53357
Kub		-30℃/+70℃
nplaim retardant (yeem)		B1/M1/M2/NFPA701
Lacquering (yeem)		Acrylic / PVDF khoom
Kev kho tshwj xeeb (yeem)		Anti-Wicking / Anti-UV / Anti-Aging / Txias Resistant / Osmosis Tiv Thaiv / Mildew Resistant

Daim ntawv pov thawj khoom

ROHS

B1 nplaim retardant

REACH

Daim ntawv thov

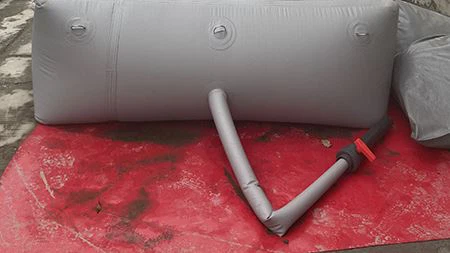

Dej Tank

Peb tsis tsuas yog muab PVC coated ntaub, tab sis kuj ua tiav lub tank dej.

Cov Dej Tank Specification

Loj	Ntim
200 * 75 * 300cm	4500L
200 * 75 * 400cm	6000L
200 * 75 * 600cm	9000L
200 * 75 * 700cm	10500L
200 * 75 * 800cm	12000L
200 * 75 * 1000cm	15000L
200 * 75 * 1200cm	18000L
200 * 75 * 1500cm	22500L
